The LCN Door Closer Regular Arm 3077 ships with 95 percent of there door closers.   This is the standard regular.   Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. The fitting for the 4040 is a six sided, the 4010, 4020 and 4110 have a flat sided oval, and the 1260 and 1460 have an eight sided star.  The LCN Part #'s on this Regular Arm is: 1260-3077, 1460-3077, 4010-3077, 4020-3077,  and  4040-3077.  If your model is not here, call us and we will quote you a price.

The LCN Door Closer Cush-n-Stop Arm 3077CNS is a Non-handed parallel arm that features solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077CNS, 1460-3077CNS, 4040-3077CNS, 4110-3077CNS.

The Panic Hex Key 7/32" is used on Dor-O-Matic Falcon and Sargent Panic Hardware to name a few.  The key measures 7/32" hex by 3-1/4" long.   Also known as a Hex Key, Dog Key, Allen Key or Dogging Key.

This is the same trusted Von Duprin 99 with Electric Latch Retraction, also known as EL.

The International Door Closer Main Arm 520 is a replacement arms used on the 640, 650, 850 and 880 series.  This arm is probably used on other International Closers also.  The arm measures 12" overall length, and fits a 7/16" square shaft.

International Door Closer part # 520

The Corbin Russwin End Cap Bracket 704F64 is also known as the Yale 81-9500-1475-000 End Cap Bracket.

Von Duprin 8827 Special Chassis Nut 050277

The 8827 Special Chassis Nut goes on the ends of the 8827 Chassis Tie Rod. The Nut is threaded all the way through so the cover mounting screws can then be threaded on it also. The nut is 3/8" long by 1/4" hex.

Von Duprin Part # 050277
Old Von Duprin Part # 960652

The Von Duprin 55EO Rim Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and the 1409 Surface Strike.  The device is also non handed.

The International Door Closer 521 Regular Arm Forearm measures 9-1/2" loop to loop in the shortest position, and 14" when it is the fully extended . The loop on the left side is 3/8" diameter. The hole spacing on the right hand side of the picture shoe is 1-3/4".

International part # 521

The Panic Hex Key 5/32" x 3-1/16" Long is a must for Von Duprin 22, 33, 35, 98 and 99 panic hardware.   This key has a longer shaft to reach deeper into the Von Duprin Panic Devices.   This key is also known as Hex Key, Dog Key, Allen Key,  and Dogging Key.

The LCN Door Closer 3077EDA Extra Duty Arm is the standard arm shipped with the 4110 series, and is optional on just about all of there other closers.  The arm features a non-handed parallel arm solid forged steel main arm and forearm with stop in soffit shoe.  Specify your current closers model number when ordering. Not all of the LCN closers have the same shape spindle on the door closer cylinder. LCN Part #'s: 1260-3077EDA, 1460-3077EDA, 4040-3077EDA, 4110-3077EDA

The Von Duprin 5547 Concealed Vertical Rod Exit Device is used primarily on aluminum framed glass doors, otherwise known as Narrow Stile Doors.   It is one of the most heavy duty cross bar devices made, and has been in production since at least the 1970's.  It will fit on Stile widths of 1-3/4", and ships with all the mounting screws, dog key and all the necessary strikes.  The device is also non handed.

To order select Finish and Type of Door Construction.   For Metal Doors select Metal Door, for Wood Doors, make sure you select Wood Door, the Wood Door model has additional brackets for mounting.

Norton 7701-11 Rod and Shoe

The Norton Rod and Shoe 7701-11 and 7701-11A come in two different lengths, 8-7/8" and 12-1/2".  The length is measured from the end of the bar to the center of the eyelet.

Norton Part #'s:
8-7/8" Long  7701-11
12-1/2" Long 7701-11A

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years.  Kit includes 17 pounds of replacement parts for the panic hardware and the outside trim.

Von Duprin part # 050046

98/99 Maintenance Kit Instruction Manual

Dorma 7414 Door Closer

The Dorma 7414 Series door closer features back check and adjustable spring sizing and is the ideal solution in a wide variety of applications, including barrier-free. This Grade 1 hydraulic surface door closer is both flexible and easy to install. The 7414 Series offers a compact design and is available in a variety of sprayed finishes to complement any opening’s decor.

Dorma part # 7414ARP689

3/4" X 10-1/4" Hole Spacing

LCN 4630 replacement arm, LCN part # 4630-3077T

The Von Duprin 4954 7' 6" Steel Mullion  is the standard mullion used on most double doors with the Von Duprin Exit Devices.  Mullions are easily removed by loosening bottom set screw and removing top fitting cover.  The steel mullions are 2" wide and 3" deep, with an 1/8" thickness construction.  We ship the 7'6" mullion, if you need the 8'6" or 10'6", please call.  Package includes the 050390 and 050335 top and bottom brackets.

The concealed LCN Door Closer 2031 -2035 Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.  It is considered an application specific closer, due to the cylinder spring sizing and handing.  The standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack.  Aluminum frame requires minimum 1 3/4”  x 4”  tube.

The Falcon Doromatic Latch Screw PB17 is also known as the SCREW.1029 and the GPB17.  The screw is a 10-32-1/4" with an undercut head.  This screw is used to hold the top and bottom latches on the door for the 1690 and 1990 series devices.

The Ives Plunger Door Holder / Stop FS1154 has been around for about 50 years.  Before the 1990's is was known as the Glynn-Johnson 1154, and when they were merged in the H.B. Ives line, the part number was changed to FS1154.  This product is constructed of cast brass or bronze that is then plated to the desired finish.  Plunger and internal parts are plated steel and provide a 1-1/4" throw for all types of doors.  Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.  The shoe is non-marring rubber that is securely fastened with a screw in flanged cup to prevent movement or loss, and when worn, shoes are easily replaced and are kept in stock as the GJ1154.  These are sometimes called pop-up or push down stops.  Ships with matching finish mounting screws.

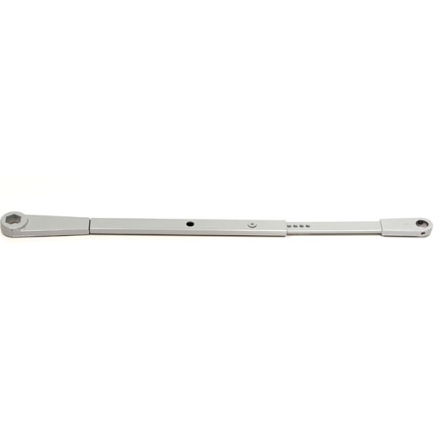

The LCN 4040SE-3077T Sentronic Door Closer Arm is only for use with the 4040SE. If you have another LCN Sentronic Model, we can special order the arm you need. For us to do that we would need to know which model you have (4110SE, 4010SE, ect..) and the hand of the door.

LCN Part # 4040SE-3077T

The International 3010-DP Adjustable Bottom Pivot is for use with the International 3010-K and 3010-PT center hung arms.  This piece is known as an adjustable dual purpose bottom pivot set.

International Part # 3010-DP

Ives FB458 Metal Door Flush Bolt

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

LCN Sentronic Door Closer Rod 82

This LCN Rod will work on most Sentronic Door Closers.
LCN part # 4040SE-82

Door Finger Protector - Exterior Push Side

This model is specifically designed for exterior doors on the push side of the door. This patented Finger-Gard product is designed for both exterior and interior doors and thus will operator in very cold and very hot tempetures. Flexible to minus 40 degrees. They are made of a special rubber that is resistant to harsh sunlight. They will allow the door to swing up to 180 degrees. This product is available in Brown or White, 78" or 83" lenghts

Our part # on this is GFG5 for the 78" length, and GFG5+ for the 83" length.

The Corbin Russwin Regular Arm Parallel Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is required if your are going to use a parallel arm mounting, which is when you have the closer mounted on the door, on the push side of the door.  Corbin Russwin part # 188F41-8.

The Falcon/Monarch Fire Rated Top Latch is used on the F-19-V, F-24-V, F-25-V, F-18-V and F-XX-V Surface Vertical Rods.  The new number from Falcon is 650375, the old Monarch Number was F588.  This latch is used on the above devices that are Fire Rated, meaning you can not dog these device in the Unlock Position.  If your device has the ability to be dogged open, then use the G588 Non Fire Rated Version

LCN 4640 Low Energy Door Closer

Ives FB61P Constant Latching Flush Bolt for Wood Doors

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

The LCN Head and Tube 78H and 78HL comes in two versions.  One is 5-3/4" long and the other is 8-5/8".  The square hole is 5/8".  The head and tube usually breaks where the cast ring attaches to the tube.  This part usually goes by the part number 4040-78H, 4040-78HL, 4040XP-78H, 4040XP-78HL, 1260-78H, 1260-78HL, ect.,.

Door Finger Protector - Interior Pull Side

These patented door guards fold against the jamb, allowing them to swing completely 180 degrees. The guard is attached to the face of the door and frame with the provided strong adhesive tape. Clear-frosted color to compliment any color scheme. Finger-Gard for use on Interior Doors, on the pull side. Available in 54" or 78" lengths.

Part number GFG3 for 54" length, and GFG4 for the 78" length

Reinforcing Pivot Hinge 4" - for use with a 4" wide butt hinge

1/2" to center line of 4" hinge.
Used to strengthen and reduce vibration
to your current full mortise butt hinges.
Made of Zinc Plated Steel

These hinges are not longer handed. Please select hand when checking out, until our system is updated.

LCN 4630 Low Energy Door Closer

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

The Von Duprin 88 Panic Device has been around since the 1950's, and is probably the device that put Von Duprin on the Map.  It is designed for all types of single and double doors with mullions.  It is field reversible, and ships with a 42" cross bar that can be cut down in the field.  The device is dogged down with a 5/32" hex key, and ships with all mounting screws and the 299 strike.

The Cal Royal Products CR441 Door Closer is an inexpensive replacement for the LCN 4040.  The mounting holes on the CR441 matches the 4040, at more than 1/2 the cost.  This closer will work on the left or right, push, pull or top jamb for mounting.   Just like the LCN 4040 it features adjustable spring tension, closing, latching and back check speeds.  It is considered a Grade 1 closer, which is the heaviest rating possible.

Cal Royal CR4040 Catalogue
