The 538 Automatic Door Holder is constructed of cast brass, and then chrome plated. The wall mounted strike has a pivoting head to adjust to different angles. The Holder/Stop measures 3-11/16 x 3 inch base, the stop projects out 1-15/16, and the strike projects out 3-1/4 inches. Holder/Stop ships with fasteners.

Only available in Brushed Chrome Finish.

Back to Back mounted 1 inch diameter stock.  One handle will be threaded and the other will be a female fitting that snugs the handle with a set screw.  The standard Stud that ships with the handle is for an 1-3/4 thick door.

Aluminum and Stainless Steel ship in 1 week, all other finishes ship in 2 weeks. Made in the USA.

Cal Royal A2200V Surface Vertical Rod

Grade 1
Non handed-field reversible
Heavy gauge steel, painted
4-1/2" minimum stile width

24" wide x 84" high, and 32" wide and 84" high also available in aluminum only

The Von Duprin 5654 Aluminum Mullion 7'2" comes prepped for two of the 299 strikes.  The removable mullion also ships with the 154 Mullion Stabilizers.  Mullions are 11/16" wide on face closest to the door and 2-3/8" at the widest point. The depth is 3-1/8" with a wall thickness of 1/8 ́ ́.  The 5654 is constructed of aluminum.  Everything is included, except the the 299 strikes.  The taller ones are also available, please call for pricing.

Dor-O-Matic 1690/1790/2390 Dogging Assembly PBX-16

Falcon Doromatic 1690, 1790, and 2390 replacement dogging assy. The dogging assembly is used to dog the door in the open position, so people can enter the building without having to unlatch the door for the inside or with a key on the outside.  The KIT.1197 comes complete with mounting screws.   Some of the earlier version where riveted into the rail, so you might need to drill out the rivets, the screws shipped with KIT.1197 have self tapping thread forming screws.

Doromatic part # KIT.1197

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break Down

Norton New Style Replacement Door Closer Springs

This is the replacement door closer spring for the Norton 78, and Yale 1900 Door Closers. Spring measures 2-11/16" diameter by 2" tall. This spring is identifiable by the number stamped on the band that holds the spring together. The band will be stamped either B/D 2/4, or E/F 5/6.

Norton 78 B/D and Yale 1902-4 use spring 24BD
Norton 78 E/F and Yale 1904-6 use spring 56EF

Norton Part # 24BD
Norton Part # 24EF

TH1114KM Pitco Style Offset Pivots are used for both flush face frame installation and 1/8" recessed door applications. Pivots replace most major door manufactures. Suitable for aluminum doors weighing up to 125 pounds. These pivots are engineered and designed for durability, style and are easy to install. To order pivot: For LHRB door order RH pivot For RHRB door order LH pivot Specifications * 3/4" offset pivots for aluminum doors and frames * For flush door / frame and 1/8" recessed door applications * Weather resistant * Aluminum case construction * Vertical adjustment 1/8" * Full race ball bearing and design, provides smooth operation on bottom pivot door portion * No sag, entire weight of doors rests on floor mounted pivot portion * Completely temper proof, yet easily removable, replaceable in unlocked position * All pivots are handed- specify LH, RH * Finish: AL-Aluminum, DU-Duronotic

The ESC6600 are non handed, with a Grade 1 thru bolted design. It features a clutch mechanism, double heavy duty spring support to prevent sagging and a hardened stell heavy duty spindle. Entrance function, key locks or unlocks lever, operates as a Classroom Function. Ships with mounting screws and a 6-Pin Schlage Mortise Cylinder.

Monarch / Falcon 24-R Series Rim Exit Device

Robust and aesthetically pleasing, the Falcon 25 Series exit devices provide you a full range of functions and are able to fit narrow and wide stile door types. Falcon is focused on providing you solid products with solid performance at a solid price. The sleek architectural design is perfect for a variety of applications to assure every door opening provides safe egress while also integrating with the overall building design. Combining functionality and design allows you to have confidence that your exit device is built to last and will look great - all at an affordable price.

• Hand: Non-handed.
• Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626);
  US32 (629); US32D (630); US28 (628), 313AN.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: 1⁄2 turn hex dogging standard. No threaded parts to wear out.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projection: 2-3⁄4" maximum, 2” dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine
  screws standard.
• ANS I: Certified ANSI A156.3-2001 Grade 1 standards.
• Center Case & Working Parts: Center case is heavy wrought and sintered metal parts.

Call for pricing on non listed finishes
2 week lead time

The Door Push Plate 70 is our thickest plate we offer.  The plate is 1/8" thick, and is aluminum, brass, stainless steel, or bronze depending on the finish.  All 4 edges are beveled.  We offer this plate in many sizes, and it ships with matching mounting screws.

Finishes

The TH1300 YKK Offset Pivot Hinge Set is found on YKK Aluminum Framed Storefront Doors.

LCN SEM7850-515 Magnet Hardware Package is used to mount the Armature or the Door Mounted part of the Magnetic Door Holders.   If you are currently using LCN door holders, you will not need to purchase this.   However, if you are using another brand and they have gone missing, you will need to purchase this component.

These standard metal extensions can be used with the LCN SEM magnet door holders to increase the holder projection. The treads on this piece are 3/8-16.

LCN Part #'s
SEM7810-E050 1/2"
SEM7810-E075 3/4"
SEM7810-E100 1"
SEM7810-E200 2"
SEM7810-E400 4"

This Coat Hook has a 2 inch diameter base, 1-3/4 inch projection and the hook has a diameter 1-1/4 inch. The hook is mounted with a 1/4-20 hanger bolt. Base material is brass or stainless steel depending on the finish.

Kawneer Style Intermediate TH1121 Hinge

Male mounting bracket measures 1-5/16” wide by 2-3/16” high, with a hole spacing of 13/16”.  Female mounting leaf measures 1-7/16” high by 1-9/16”, with a hole spacing of 3/4” center to center. These hinges are non handed.

The Door Pull Plate 5020B is constructed of .050" wrought metal, in either solid aluminum, brass or stainless steel, with Door Pull GHE20 -8" center. Handles come with thru bolts, finish washers and the plates come with sheet metal screws that fit the countersunk holes.

Finishes

The Door Pull Plate 5010 is .050" wought solid aluminum, stainless steel, or brass depending on the finish. The Door Pull GHE10, handles come with thru bolts. The plate has counter sunk holes and sheet metal screws in matching finish.

Finishes

3" x 12" GPL312
3.5" x 15" GPL315
4" x 16" GPL416

The Von Duprin HD-QEL Baseplate conversion is used to convert the older 33A/35A/98 and 99 HD-EL models to the newer motor driven devices. The HD-QEL is a Hex Key Dogging QEL Model. The QEL is a quiet motor driven solution.

Von Duprin Part numbers:
36" devices  958004
48" devices 040067

The SEM7810-514 LCN Ball Pivot Connection Link Coupler Assembly Kit, is required for each door needing extension(s). Kit includes coupler link and ball pivot (alone serves as an 1-1/2" extenison). The threaded end is 3/8-16.

LCN Part # SEM7810-514

Replacement Rod for the LCN 4630 Door Closer, LCN Part # 4630-82

The Command Access VLP-KIT is a replacement for end of Life Solenoid powered Von Duprin exits. The VLPKIT is a field installable solenoid latch pullback baserail for 36 inch Von Duprin 33/35 and 98/99 series devices.

Universal Intermediate Storefront Door Pivot.  Comes with all the screws need to install right out of the box.

Von Duprin NL Drive Screw 090074

The 090074 NL Drive Screw is used on the Von Duprin 22, 98 and 99 Exit Devices to control the rotation of the key cylinder cam. This small set screw, screws into the back of the chassis assembly next to the receptor for the Rim Key Cylinder. The set screw measures 5/16" long by 3/16" diameter. Note: When the NL drive screw is left in back of device, the outside cylinder will function only as a Night Latch. The Night Latch function means the door can only be opened, but not dogged open with the key cylinder.

Von Duprin Part # 090074
Old Von Duprin Part # 970441

NO LONGER AVAILABLE

Dor-o-Matic 2390 Fixed Cover Screw

The Doromatic 2390 Fixed Cover Screw is the screw that holds the Fixed Cover on. The screw is a 12-14 x 1/2" long UFPH MS Type 25 Screw. This is a self tapping screw.

Doromatic / Falcon Part # SCREW.1088 or PB350

The Von Duprin 99 Rim Center Case 050020 replaces all previous versions of the Von Duprin 98/99 Rim Device Center Cases. One of the best things about a Von Duprin is when they redesign a part, they make it so your old device is not obsolete and you can update your device.  All internal parts, springs, screws and cover mounting bracket included.

Von Duprin Part # 050020

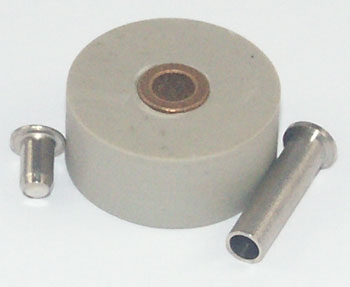

One of the most common issues with Roller Bumpers and Gravity Type Coordinators is that the rubber wheel dries out and eventually falls off.  With this Replacement Roller For Roller Bumper, you can now just change out the wheel.  The wheel has 15/16" diameter and is 7/16" wide.   The hub diameter is 3/16".  This package ships with the wheel and a replacement axle that features a "fast rivet" head.

International 89L Escutcheon Trim

Clutched lever trim for use with the 8000 Series International Door Closer Exit Devices. Escutcheon measures 8-27/32" high by 2-15/16" wide by 15/16" thick. Trim is non handed and easily converted in the field. We offer 3 functions, Classroom, Passage and Storeroom.

Classroom - cylinder (not included) locks and unlocks lever handle
Passage - no cylinder hole, lever always active
Storeroom (Night Latch) - cylinder (not included) unlocks lever, but lever is always locked when key is removed.

The Corbin Russwin 188F03 Quik-Install Mounting Bracket is the standard bracket shipped by them for the past 40 years.  This replacement bracket will work on the older Corbin 100, 110, and 120's, and the Russwin 2800, 2810 and 2820's.  Along with the DC3210 and DC6210 Door Closers.  This bracket is what you mount on the door or door frame and the door closer cylinder mounts to.  Corbin Russwin part # 188F03.

Bracket size: 1-3/4" (44mm) (vertical) x 6" (152mm) (horizontal)
Hole spacing: 1" (25mm) (vertical) x 4-5/16" (110mm) (horizontal)

Intermediate Hinge IP-2202 and IP-2201

Cast aluminum construction with steel bearings and axle. The set measures 3-1/2" tall with an 1-3/8" projection. This hinge is usually used an an intermediate hinge in between the top and bottom hinge.

Manufacture part # IP-2202 and IP-2201
IP-2202 is for Right Hand Doors
IP-2201 is for Left Hand Doors

Pull Plate 100

This 2" x 3-3/4" pull plate is constructed of solid aluminum, brass or stainless steel depending on the finish. The plate is .125" thick and the diameter of the hole is 1-1/4 inches.

Finishes

The Cal Royal 7700 is for use on the 7700 Series Exit Devices. Kit features a new dogging shaft and 7/32 inch dog key.

Yale 7000 Exit Device Dogging Assembly

Dogging assembly uses a 5/32" dog key

Yale Part # 60-7000-406-999
Sometimes call the 60-7000-0406-048

• Handed
• Top, header mount
• Bottom, jamb mount
• Use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Maximum door load 200 pounds
• Vertical adjustment range 3/16", with positive locking

Handing diagram

• Available (NHO) non-hold open,
(SHO) selective
hold open. Specify degree (90, or
105°)
• Standard top pivot: 180 included
• Cycolac cement case
• Separate independent valves for closing,
latch and backcheck adjustments
• Built-in positive dead stop prevents door
from swinging beyond the desired
opening degree
• Vertical door adjustment

When Less All Parts is selected only the Cylinder is shipped, just the replacement hydraulic cylinder will be shipped

The Cal-Royal NARL9800 is a time tested heavy duty Alarmed exit device.  Alarm works with a 9 volt battery.

Ives RL30 Roller Latch

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.
