The International Door Closer 200 Series Overhead Concealed Closer has been in there line up for at least 20 years.  It is designed as a replacement for the Jackson 20-330 concealed closer.  This closer is a fixed spring closer with two adjustment valves, one for closing and one for latching speeds.  It has a built in positive back stop and hold open positions, if you order the hold open option.  To order select the desired opening swing (90 or 105 degrees) and hold open or non hold open.  This is just the hydraulic cylinder, the arms are sold separately.

2000-B-230 105 with Hold Open
2000-B-231 105 with No Hold Open
2000-B-232 90 with Hold Open
2000-B-233 90 with No Hold Open

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

The Von Duprin Panic Device 230 DT Trim will work on the 22 and 2227 series only.  When the exit device is dogged open, the plate is operational.  The plate measures 3" wide by 12-1/16" high with a plate thickness of 3-/32".

Jackson Exit Device Crossbar Screw 1085/1095

Self threading screw cuts its own threads into the extruded aluminum crossbar.

Jackson Part # There is not a part #. Jackson only sells the screw as a package with the crossbar.

The Falcon TD35 Roller Strike is used with the Dor-o-Matic Falcon 1590, 1790, and 2090 panic device where you are trying to protect the frame when the door closes.   The strike has been manufactured since the 1970's.  This part is also known as a Kawneer 133479 strike.  The strike ships with mounting screws in a painted black finish.   This style of strike is also known as a Blade Strike.

Doromatic Falcon Part # TD35 or 4270107393

Jackson Exit Device 2085 Dogging Assembly RH/LHRB

This Jackson Exit Device dogging assembly is used on the 2085 Device made after October 1, 1999. It will work on the previous version of this exit device, but you may have to use a file a remove some material from the catch.

Jackson Part # 30-2467

This spring would be for the Device on the Left, shown below.

The Von Duprin Panic Device 55 Center Case 050183 is a replacement housing for the 55 Rim Device.  The housing includes all of the internal workings and latch bolt.  Von Duprin Part # 050183.

LCN Drop Plate for Top Jamb Mounting

Use the LCN Top Jamb Mounting Plate for applications where the door closer body is mounted on a narrow overhead jamb.

LCN Part #'s
1260-18TJ
1460-18TJ
4020-18TJ
4040-18TJ

Dor-o-Matic 1690 and 1790 Pushbar Pin

Doromatic part # PIN.128 or PB322

Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown

International 8630S Surface Vertical Rod Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

For doors 29" to 36" wide order the Size 30 to 36"
For doors 36" to 48" wide order the Size 48"

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

Cal Royal 7000 Night Latch Trim

2-5/8" X 15"

Cal Royal Thumb Pc Trim

Works with the 7700 Series

2-5/8" X 15"

The Von Duprin Panic Device 210K  Knob Trim is for use on the 22 Rim and 2227 Surface Vertical Rod devices.  Key in knob can lock and unlock the knob.  Since the enforcement of local ADA standards, this knob is probably at the end of this life, no one seems to want these anymore.  The mounting plate measures 3" wide by 4-25/32", and is 3-32" thick.  We do have parts on this Knob, but at this point they are not on the website.

Cal Royal 2000 Dummy Trim

3" X 7-3/4"

Cal Royal Part # 2200DTP

The Von Duprin Panic Device 880K Trim is for use with the 88 series devices only.  Plate measures 3" wide by 14-3/16" long with an 1-5/8" diameter bore for cylinder. Knob projects out 2-3/4".  We do not sell many of these anymore, due to ADA requirements, but they are still available.

The Von Duprin Panic Device 996L Lever Trim has an escutcheon plate that measures 2-3/4" wide by 10-3/4" high and projects out 27/32". The handle projection is 2-7/8". The key cylinder, not included, locks and unlocks the lever.  This lever handle is handed, but is field reversible. Key lock and unlocks lever.  We ship the 996L-R&V

The Von Duprin Panic Device 880TP Trim is for the 88 series only.  The stanchions welded on the back line up with the 88 device on the interior.  The optional key cylinder locks and unlocks the thumb piece.  The plate measures 3" wide by 14-3/16" long with an 1-5/8" bore hole for cylinder.

Von Duprin part # 880TP-R

The Adams Rite 8800EL Electric Latch Retraction Panic Hardware is the same as the 8800, but with an internal solenoid to retract the latch-bolt.   This is a very popular device in the Hotel Industry and is usually used in conjunction with a card reader.

The 8800 features the Starwheel locking bolt that interlocks door to the door frame.  The 36" version is in stock, we can also get the 30", 42" and 48" devices, lead time is 2-3 weeks.  This device is used exclusively on aluminum framed glass storefront doors.  Replacement parts are available.

To order specify your Door Width, Color or Finish, and Voltage (12 or 24 Volt).

The Von Duprin Panic Device 88 Mounting Screws are used on the 88 Exit Device, there description is 88C/C or E/C Mtg Pkg (CS and MS). The package included 12 screws, 6 machine and 6 hybrid.

Von Duprin Part # 900503
.

Cal Royal 7000 Lever Trim

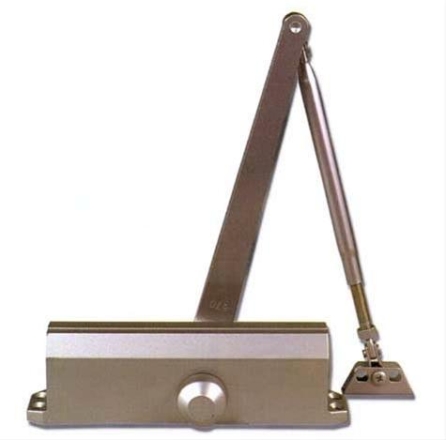

The Global Door Closer TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation.

In this series, our Global Door Closer TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16" industry standard hole patten to update any opening for code compliance.
Hole Spacing is 3/4" x 9-1/16"

Options: Specify when ordering:

• Finish - AL, DU
• Size 1-4 or 3-6

The Panic Hex Key 5/32" X 2-1/8" Long is usually used on Dor-O-Matic, Falcon, Corbin Russwin, Von Duprin 55 and 88 and Yale panic hardware.  This Hex Dog Key is not long enough for the Von Duprin 33, 34, 33A, 35B, 98 or 99 Exit Devices.  Also known as Hex Key, Dog Key, Allen Key, Dogging Key

The Doromatic 2390 Anchor Block Assembly is used to connect the push bar to the device channel.

Discontinued December 2024

The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's.  Although it is now called a Falcon 1990, it is still the same device.  This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware.  The housing includes all of the interior springs, arm, and dogging screw.  Housing measures 7-1/2" long by 1-3/16" wide.  The center to center distance of the mounting studs is 6-1/4".

LEFT HAND SHOWN IN PICTURE

See diagrams for handing.

Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand black

1990 parts breakdown

2090 parts breakdown

This new LCN 1450 Rw/PA Door Closer is a direct replacement for the Norton 8000,Yale 3000, and Falcon/Dor-o-Matic SC80 Series Door Closers, or any door closer that has the 3/4" x 12" hole spacing.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing 3/4” x 12”

International 8610S Rim Device-Grade 1

DC 8000 Series Exit Devices are heavy duty and designed for heavy traffic applications. The devices are Underwriters Laboratory (UL, USA and ULC, Canada) listed for Panic Exit Hardware or Fire Exit Hardware, and are certified to ANSI A156.3-2001 Grade 1.

Non handed, 4-1/2" minimum stile width. Smooth Surface.

The LCN 4050 Rw/PA Door Closer is a newer Closer and is a direct replacement for the Norton 7500, Yale 4400, and Falcon/Dor-o-Matic SC70 Series Door Closers.  It features, a cast aluminum cylinder, 25 year warranty, powder coated finishes, and stick on mounting template.  This door closer comes with the ability to mount on the push, pull or top jamb and is non handed.   The door closer meets Grade 1-ANSI A156.4, UL/cUL, ADA and the Buy American Act certifications.

Hole Spacing:   2-3/8” x 6-3/4”

The Von Duprin 98 Rim Panic device has been around since the late 1970's and has gone through a couple of improvements.  One of the great things about the 98 is the availability of replacement parts.  Even when the device is upgraded, the upgraded parts will work with the older versions that can be close to 40 years old.  This device is for all types of single and double doors with mullions.  The device is UL Listed for Panic Exit Hardware and is considered Grade 1, the heaviest duty rating possible.  The Von Duprin 98 device has a smooth mechanism case and the Von Duprin 99 device has a grooved case. The rim device is non-handed, meaning it will work on Left and Right hand doors.   Ships with all the mounting screws and the 299 Strike.

Yale 2300 Door Closer

• Spring size 2, 3, 4, 5
• Separate and independent valve for sweep speed and latch speed
• Adjustable backcheck standard
• Regular, top jamb, parallel mount
• 5-year limited warranty
• ANSI/BHMA A156.4 Grade 3

3/4" x 9-1/16" hole spacing

In April of 2023 Norton Yale have discontinued the 2300 and 9300.  The Norton 1600 will be sent in place of the 2300.   Same Hole Spacing, but adjustable spring tension.

Cal Royal 2000 Night Latch Trim

3" X 7-3/4"

Cal Royal Part # 2200NL

Cal Royal 2000 Series Thumb Pc Trim

2-5/8" X 16"

Cal Royal part # THP00

Jackson Panic Device 1285 Push Pad End Cap Package

Package includes two end caps, one bracket mounting screw, and 4 end mounting screws. This product was just upgraded to a metal cover, which will replace the old plastic cover.

Old Jackson part # 30-2661
New Jackson Part # 30-2652-628 or 30-2652-313

The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.

Replacement parts are also available

Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.

Cal Royal 7000 Series Dummy Plate

2-5/8" X 15"

The Adams Rite Panic Device Dog Key is used on there older models.   The key is made of high density plastic, and is also known as Hex Key, Dog Key, Allen Key, Dogging Key.  Adams Rite part # 25-0480.
