The Von Duprin 88 Lever Arm Right Hand 050438 replacement lever arm for all the Von Duprin 88 exit devices. Usually replaced due to the dogging screw stripping out.  The arm includes the Wedge, Wedge Ring, Wedge Tite Screw and Dog Screw, and sometimes the axle.

Von Dupin part # 050439
Old Part # 100729

The Von Duprin 88 Wedge Ring 090020 is also used on the Von Duprin 55's.  The Wedge Tite Screw applies pressure on the Wedge which expands the Tube Attaching Ring to grip the Cross Bar. Measures 5/8" on the flat edge.

Von Duprin Part # 090020
Old Part # 956520

The Von Duprin 8827 Top Latch Case 050460 is for non fire rated doors. A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  This is the part that may be causing your bottom latch to drag on the floor. The Top Latch does all the work on the Von Duprin 8827. When the Top Latch is retracted, it holds the rods in the retracted position.

Von Duprin part # 050460
Old Part # 101750

The Von Duprin Panic Device 8827 Center Case 050415 is for use on the non fire rated 88 surface vertical rod.   You can tell the difference by the dogging screw.  If you have a Dogging Screw on your device, then this is the correct part.  Includes the internal pieces, including the Rod Control.

Von Duprin part # 050415

Von Duprin 8827 Bottom Vertical Rod Assembly

This bottom vertical rod is used on non fire rated doors. The rod includes the bottom rod connector.

Von Duprin Part #050455
Old Part #101777 and 103234

Von Duprin 8827 Bottom Rod Connector.

Connects bottom rod to the bottom latch. The Bottom Rod Connector is included with the Von Durpin Bottom Rod.

Von Duprin Part # 050327
Old Part #960578

The Von Duprin 8827 Bottom Latch Case 050461 is used on all Von Duprin 8827 non fire rated exits.  A non fire rated device is one that has to positively latch every time it closes, you can usually tell, because a non fire rated device has the hex key dogging.  Included mounting screws.

Von Duprin Part # 050461
Old part # 101751

The Von Duprin 8827 Latch Covers 050464 is used on the top and bottom latches of the 8827 Panic Hardware, and the bottom latch of the 8827-F Fire Rated Hardware.  Latch covers come with matching screws

Von Duprin Part # 050464
Old Part # 960548

Von Duprin 8827 Top Rod Connector

Inserts into rod so the latch can connect to the rod. The top vertical rod does not ship with the top rod connector!

Von Duprin Part # 050279
Old Part # 960577

Von Duprin 8827 Rod Guide Assembly

Securely holds rod in place and protects rod from bending.

Von Duprin Part # 050482
Old Part # 101648

The Von Duprin 22, 33, And 99 Dogging Shaft 090040 is the peice that the hex dogging key would fit into. The shaft is for a 5/32" dog key, but it has to be the long version.   The shorter versions will not have enough reach to get all the way into the shaft.  This is a very common problem area, the hole that the key fits in is only about 1/4" deep, and if you do not push down on the hex key when locking it open it will round out over time.  To remove the shaft, just pull it straight out with a part of channel locks.   We reinstalling the new one you might have to bend the ends of the adapter spring 090042 back down. This dogging shaft is for use on all Von Duprin Panic Exit Devices shipped after 1997.

The Von Duprin Dogging Spring 090041 is the spring that activates the Dogging Hook # 090044.  These do occasionally fail, we sell them individually.  It is # 3 on the diagram.

The Von Duprin Dogging Adapter Spring 090042 is the clip that holds the dogging shaft in the assembly.  We sell these individually, and it is the #2 item on the diagram.

The Von Duprin Dogging Adapter 090043 is the piece that the 090042 and 090040 fit through and lock in place.  These piece very rarely has to be replaced.  The Shaft 090040 is usually the part you need to replace.  We sell these individually.

The Von Duprin Dogging Hook 090044 is the piece that grabs the push bar mechanism and keeps it in the dogged position.  The does wear out, but it takes a long time.  This piece is used on the 22, 33A, 35A, 98 and 99 series devices made after 1997.  We sell this part individually and it is #5 on the diagram.

The Von Duprin 22 Mechanism End Cap 900981 is the end cap and bracket that ships with the 22 and 2227 series.  The bracket is constructed of zinc plated steel and the end cap is black plastic. Bracket also acts as mounting bracket that holds the exit device on the door.  Von Duprin does offer a new Metal End Cap, look under related products.

Von Duprin part # 900981

The Von Duprin 22 End Cap Only 968601 is the end cap that goes on the hinge side of the door. When the cap breaks off the Dogging Cover Plate just slides off. Works on all of the Von Duprin 22 exit devices. If you need the bracket also, please order part # G22R10. Black plastic construction. As of October 1, 2014, Von Duprin no longer sells just the Plastic Cap Only. The complete End Cap and Bracket 900981 will be shipped in its place.

Von Duprin Part # 968601

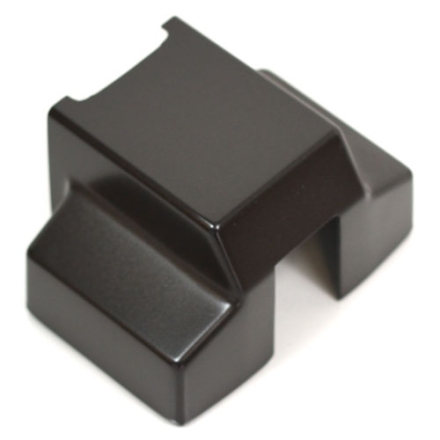

The Von Duprin 22 Rim Center Case Cover 968603 is for use on the 22 rim devices.  The cover comes with mounting screws and is available in aluminum SP-28 or dark brown SP-313.

Von Duprin part # 968603 SP28 or SP313

The Von Duprin 22 Center Case 109012 has been around for almost 40 years.  This case will replace all of the non fire rated center cases, meaning all of the devices that have a hex key dogging assembly on the hinge side cover plate.

Von Duprin Part # 109012

Von Duprin 22 Control Link Pin

The control link pin is the connector pin, that connects the latch head assembly to the push bar assembly. When the push bar is pushed in it retracts the latch bolt and the pin connects the two pieces. This Control Link Pin is used on the Von Duprin 22, 33A, 98 and 99 Panic Devices.

VON DUPRIN PART # 050529
Old Von Duprin Part # 969520

Von Duprin 22 Cover Plate 968595 968596

Von Duprin 22 Dogging Cover Plate. Plate covers the dogging assy, or hinge side of the exit device. This plate sides off when the plastic end cap breaks or goes missing.

Von Duprin Part # 968595   measures 10-3/4" Long  for 3' devices
Von Duprin Part # 968596   measures 16-3/4" Long  for 4' devices

The Von Duprin 2227 Center Case Cover 968888 comes in an Aluminum SP-28 or Dark Brown SP-313 color.  This piece is for used on the 2227 Surface Vertical Rod Panic Hardware.  Package also included mounting screws.

Von Duprin Part # 968888

The Von Duprin 2227 Bottom Vertical Rod 109362 has a length of 33-1/4" to 33-1/2" that is set at the factory.  All the bottom rods are the same length because of ADA standards. The top rods are field adjustable.

Von Duprin part # 109362

The Von Duprin 2227 Bottom Latch 050090 replaces and updates all 2227 bottom latches to the new style if you device was shipped before October 1998. If your device was shipped after October 1998 then use the G050401.

Includes screws and bracket

Von Duprin Part # 050090

The Von Duprin 2227 Top Latch 050091 latch is used on devices shipped before October 1998, see related products for the new style latch if your device is newer. This is usually the problem if your bottom rod is dragging on the floor.  Latch measures:   1-1/16" wide x 4-5/16" long (less latch bolt) x 1-7/8" projection at the highest point.  Includes screws.

Von Duprin Part # 050091

The Von Duprin 2227 Latch Covers 050566 is used on the top and bottom latches.  Package includes mounting screws

Von Duprin part # 050566

The Von Duprin 2227 Top Vertical Rod 109361 will work on all 2227's up to door heights of 7'1".  The actual length of the rod is 37-3/8", less the fittings.  If your door is taller you will need a rod extension.  Call 1-800-642-2403 for longer top rods or rod extensions.

Von Duprin part # 109361

The Von Duprin 2227 Rod Guides Assembly 112063 works on all of the Von Duprin 2227's, and replaces the older style that featured the plastic cap and the springs.  This device is used to add strength and rigidity to the top and bottom rods on there surface vertical rod.

Von Duprin part # 112063

The Von Duprin Exit Device 2227 Center Case 109358 replaces worn out Von Duprin 2227 Surface Vertical Rod Center Cases.  The center case has been the same for the last 30 years.

Von Duprin Part # CASE.107
Old Von Duprin Part # 109358

The Von Duprin Exit Device 5547 Blind Fastener Kit 900539 is used to connect the Rod Control Housing to the Rods.  This part is used on the 5547 Concealed Vertical Rod only.

Von Duprin Part # 900539

Von Duprin 880/990 Trim Hex Stud

This is the Hex Stud used on the 880 and 990 Trim Plates. The threads are 7/32-24. Overall lenght is 2"

Von Duprin Part # 956760

The Von Duprin 99 Mechanism End Cap 050014, also known as 33A/35A/98/99/330/350 Impact Resistant End Cap Kit.  Replaces all of the old versions of the 98/99 End Caps, the mounting holes may be different.  Includes end cap, bracket and all screws

Von Duprin Part # 050014

The Von Duprin 99 Rim Center Case 050020 replaces all previous versions of the Von Duprin 98/99 Rim Device Center Cases. One of the best things about a Von Duprin is when they redesign a part, they make it so your old device is not obsolete and you can update your device.  All internal parts, springs, screws and cover mounting bracket included.

Von Duprin Part # 050020

The Von Duprin 99 Rim Center Case Cover 050071 replaces your old 1 or 3 piece covers.  Included in the package is the cover and the mounting screws.

Von Duprin part # 050071

The Von Duprin 99 Cover Plate 050114 is for use on the  33A, 35A, 98 and 99 devices.  Covers the dogging assembly on the hinge side of the door. The usually fall off when the End Cap is not on the exit device.  Von Duprin is only shipping a 20-1/2" cover plate now, which will work on 3' and 4' doors, you will have to cut more off if you have a 3' device with a hack saw or chop saw.

Von Duprin Part # 050114 and 050117 Hex Key Dog Conversion Kit

Von Duprin 99 Cover Plate 050114
